При установке Greddy E-manager Ultimate на Toyota Caldina GT-T сильно помогает эта схема которую  нашел в загашнике:

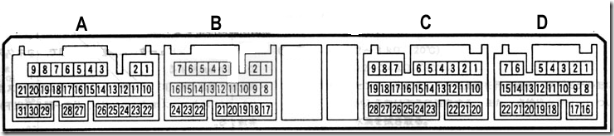

распиновку для мозга Caldina ST215W на двигатель 3S-GTE

актуально для подключения Greddy E-Manage ULTIMATE к калдине.

pins

Block
Pin
Assignment
Description
3S-GTE
3S-GE
A
1
#10
Injector #1
Black
Black
A
2
#20
Injector #2
Black-White
Black-White
A
3
#30
Injector #3
Green-Yellow
Green-Yellow
A
4
#40
Injector #4
Black-Yellow
Black-Yellow
A
5
(SLT-)
A
6
(SLT+)
A
7
A
8
A
9
A
10
IGT1
Ignitor #1
Yellow-Black
Blue
A
11
IGT2
Ignitor #2
Red-Blue
Red-Blue
A
12
IGT3
Ignitor #3
Blue-White
Blue-White
A
13
IGT4
Ignitor #4
White-Blue
White-Blue
A
14
—
A
15
—
A
16
—
A
17
—
A
18
RSO
Idle Speed Control
Black
Red-White
A
19
—
A
20
—
A
21
EO1
Earth (Engine)
Brown
Brown
A
22
FPU
Fuel Pressure VSV
Pink
A
23
OCV-
VVTi
Pink-Blue
A
24
OCV+
VVTi
Red
A
25
—
A
26
(NC-)
A
27
KNK
Knock Detector
White
White
A
28
CF/FAN
Cooling Fan
Pink-Black
Pink-Black
A
29
(S4)
A
30
—
A
31
EO2
Earth (Engine)
Brown
Brown
B
1
EVG
Air Flow Sensor Earth (3S-GE)
Black-Orange
B
2
VC
+5v
Light Green-Red
Light Green-Red
B
3
HT
Oxygen Sensor Heater
Black-Yellow
Black-Yellow
B
4
PRG
Evap Purge valve
Black-Orange
Red-Yellow
B
5
—
B
6
SPC
Turbo VSV
Blue-Black
B
7
FPR
Fuel Pump Relay
Black-Red
B
8
STA
Start
Black-White
Black-White
B
9
ION1
Ignitor #1 Signal Return
Yellow
Yellow
B
10
ION2
Ignitor #2 Signal Return
Yellow-Black
Yellow-Black
B
11
VG (PIM)
VG = Airflow (3S-GE) PIM = Manifold Pressure(3S-GTE)
Green-Black
Blue-Black
B
12
OX1
Oxygen Sensor
Black
Black
B
13
—
B
14
THW
Engine Water Temperature
White
White
B
15
G2+
Black-White
Black-White
B
16
NE+
Black-White
Black-White
B
17
E1
Earth
Brown
Brown
B
18
E2
Earth
Brown
Brown
B
19
ION3
Ignitor #3 Signal return
Yellow-Green
Yellow-Green
B
20
ION4
Ignitor #4 Signal return
Yellow-Red
Yellow-Red
B
21
—
B
22
THA
Intake Air temp
Red-Blue
Brown-White
B
23
VTA (TP)
Thtottle Position
Light Green
Light Green
B
24
NE-
Blue
Blue
C
1
( D )
Drive
Black-Yellow
Black-Yellow
C
2
( R )
Reverse
Black-Yellow
Black-Yellow
C
3
—
C
4
—
C
5
TC
Check Connector (12v)
Pink-Black
Pink-Black
C
6
C
7
C
8
C
9
C
10
C
11
C
12
C
13
ACT
Air Conditioning
Light Green-Black
Light Green-Black
C
14
THWO
Water Temp Output to A/C?
Yellow-Red
Yellow-Red
C
15
C
16
C
17
BPC+
Traction Control Throttle Motor
Pink-Black
Pink-Black
C
18
C
19
C
20
NSW
Neutral Start Switch
Black-White
Black-White
C
21
C
22
SPD
Speed
Violet
Violet
C
23
C
24
C
25
AC
Air Conditioning Demand
Yellow-Green
Yellow-Green
C
26
BPC-
Traction Control Throttle Motor
Brown
Brown
C
27
TACH
Tachometer
Black
Black
C
28
—
D
1
BATT
Battery +
Black-Red
Black-Red
D
2
—
D
3
FC
Circuit Opening Relay
Green-Red
Green-Red
D
4
—
D
5
D
6
W
Warning
Red-Yellow
Red-Yellow
D
7
PSW
Power Steering Pressure Switch
Green-Yellow
Green-Yellow
D
8
D
9
D
10
THAM
Intake manifold Temperature
Red-Blue
Red-Blue
D
11
SIL
Check Connector (Signal)
White
White
D
12
D
13
EFI-
TRC/ABS
White
White
D
14
EFI+
TRC/ABS
Red
Red
D
15
NEO
TRC/ABS
Black-Orange
Black-Orange
D
16
IG+
Igniton Switch
Black-Yellow
Black-Yellow
D
17
D
18
TRC-
TRC/ABS
Blue
Blue
D
19
ELS
Rear Window Demister
Green-Yellow
Green-Yellow
D
20
D
21
TRC+
TRC/ABS
Light Green
Light Green
D
22
D
23
D
24
D
25
D
26
D
27
D
28
D
29
D
30
D
31
